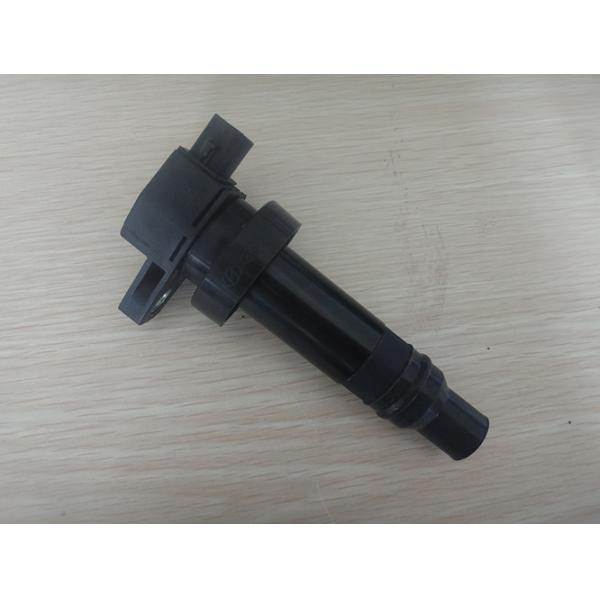

Pensil Automotive Car Ignition Coil for FORTE / RIO / SOUL / CERATO / AVANTE

Product Categories

Nanjing Tianyi Automobile Electric Manufacturing Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TY

Model Number : TY0030C05

Certification : ISO/TS 16949: 2009

Place of Origin : CHINA

MOQ : 120 PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10,000 pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Based on customers

Product name : Pensil ignition coils

Material : PBT & lacquered wire & rubber & epoxy

Withstand voltage : ≥30KV

Working environment : -20℃~150℃

Contact Now

Pensil Ignition Coil 27301-2B010 for FORTE / K2 / RIO / SOUL / K3S / CERATO / K4 / AVANTE / ELANTRA / ACCENT

1. Specifications:

Item	Technical Parameter
Static values before thermal shock test
Primary resistance (mΩ)	600±10%
Primary inductivity (mH)	/
Secondary resistance (kΩ)	6±10%
Secondary inductivity (H)	/
High voltage before thermal shock test
Secondary voltage (kV) 1MΩ	＞30
Secondary voltage (kV) 1MΩ 50pF	＞25
“30kV”-test before thermal shock test
30kV over 3 min (open load)	OK
Thermal shock test
50 Zyklen (40min -20℃；20min +120℃)	OK
Static values after thermal shock test
Primary resistance (mΩ)	600±10%
Primary inductivity (mH)	/
Secondary resistance (kΩ)	6±10%
Secondary inductivity (H)	/
High voltage after thermal shock test
Secondary voltage (kV) 1MΩ	＞30
Secondary voltage (kV) 1MΩ 50pF	＞25
“30kV”-test before thermal shock test
30kV over 3 min (open load)	OK

2. Description:

Adopts high-temperature resistant lacquered wires and high silicone steel sheets and imported epoxide resin for capsulation
Can be used in the temp of -20℃~150℃
Prevent water, dust and shaking
Can work in severe environment, keeping good ductility but no cracking
Owns a long lifetime (≥30,000Km / ≥2 years), huge power and stable performance

3. Applications:

Pensil Automotive Car Ignition Coil for FORTE / RIO / SOUL / CERATO / AVANTE
